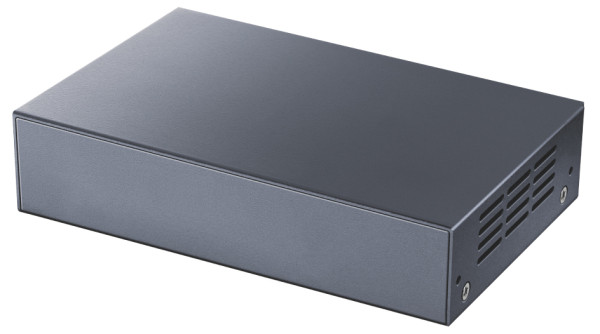

Cudy POE40 60W/30W Gigabit POE+ Extender, 802.3af/802.3at Standard, Data Power 100 Meters, Metal

Opis

4-Channel Gigabit POE+ Extender, Model: POE40
Kompatibilan sa: IEEE802.3af/802.3at/802.3bt,
Jedan gigabitni PoE ulazni port (maksimalno 60 wat),
Četiri gigabitna PoE izlazna porta (30 wat maksimalno po portu),
Proširuje PoE signal za dodatnih 100 metara,
Nije potrebno dodatno napajanje,
Automatski detektuje PoE i ne-PoE opremu,
Instalacija za sto ili zid,
Metalno kuc´ište, plug and play.

Model: POE40
No. of channels: 1(PoE IN) into 4(PoE OUT)
Pass Through Data Rates: 10/100/1000 Mbps half/full duplex
Power over Ethernet input: Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
Power over Ethernet Output: Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
Output Power: up to 12W for 4 PSE or 30W for 2 PSE
Indicators: LED indicators are located on the RJ45 connector
Power indicator: PoE enabled
Powered success: Power
Network indicator: Link/Act
Connectors: Shielded RJ-45, EIA 568A and 568B
Network cables: Shielded category 5E (or higher)
Dimensions: 119mm x 85mm x 28mm
Mounting: Wall of shelf
Environment: Indoor
Environmental Conditions: Operating Ambient Temperature: 0 to 45C
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: -40 to 70C
Storage Humidity: Maximum 95%, Non-condensing
Regulatory Compliance: IEEE 802.3af (15.4W), IEEE 802.3at (30W) , IEEE802.3at 4Pairs(60W)
