Opis
Specifications
General
Model No.
PH-EC400GA_DBK01
UPC Code
886523303558
Case Dimensions
495 x 230 x 522 mm | 19.5 x 9.05 x 20.55 in
Form Factor
Mid-tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280 mm wide
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
2
+ 1x 3.5″ HDD
Internal 3.5″ Bay
2
+ 0x 2.5″ SSD
Front I/O
1x USB 3.0
1x USB-C 3.0 Gen2
Microphone | Headphone Combo
Reset button
Power button + LED
Fans 120 | 140
Total Fans
7x | 6x
Top
3x | 2x
Front
– | 3x
3x 140 Pre-Installed
Side
– | –
Rear
1x | 1x
1x 140 Pre-Installed
Bottom
3x | –
Radiators 120 | 140
Top
Max. 360 | 280
Front
– | –
Rear
120 | –
Bottom
– | –
Clearance
CPU Cooler
Height
184 mm | 7.24 in
GPU
Length
415 mm | 16.33 in
GPU
Width
184 mm | 7.24 in
Power Supply
Length
270 mm | 10.60 in
Top Radiator
Length x Width x Height
360 Radiator
415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in
280 Radiator
360 x 147 x 65 mm | 14.17 x 5.78 x 2.55 in
Rear Radiator
Length x Width
170 x 132 mm | 6.69 x 5.19 in
Extra
Net Weight
8.63 kg | 19.02 lbs
Gross Weight
10.50 kg | 23.14 lbs
Warranty
5 Years limited
Learn more
Scope of Delivery

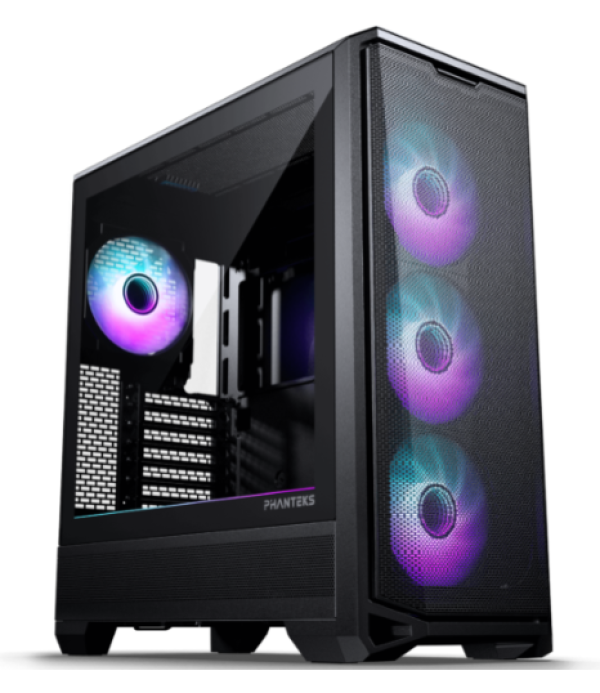

1x Eclipse G400A chassis
4x M25G2-140 fans (Pre-installed)
1x D-RGB mainboard adapter
Accessory Box
30x Zip ties
4x Screw cover corner L
4x Screw cover corner R
4x Screw cover bridge
Screws
18x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
12x 30 mm fan screws
1x Mainboard stand-off
1x Stand-off removal tool
1x Extra R-side panel screw
